- Size: 0.065
- Place of Origin: China
- Brand Name: DP-PV

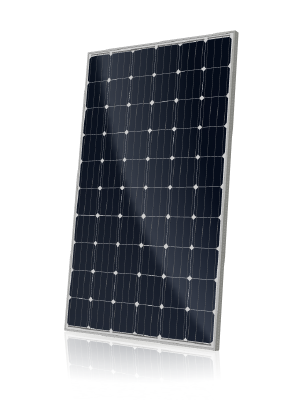

- Model Number: DP-M60
- Weight: 18.200 kg
ELECRICAL DATA
DP 275W 280W
Nominal Max. Power(Pmax) 275W 280W
Opt.Operating Voltage(Vmp) 31.3V 31.5V
Opt.Operating Current(Imp) 8.80A 8.89A
Open Circuit Voltage(Voc) 38.3V 38.5V
Short Circuit Current(Isc) 9.31A 9.43A
Module Efficiency 16.8% 17.11%
Operating temperature -40℃~ 85℃
Max.System Voltage 1000V(IEC)or1000V(UL)
Module Fire Performance TYPE1(UL 1703)or
CLASS C(IEC61730)
Max.Series Fuse Rating 15A
Application Classification ClassA
Power Tolerance 0~ 5W
Under Standard Test Conditions(STC)of irradiance of 1000W/㎡，spectrum AM1.5 and cell temperature of 25℃
- Size: 0.065
- Place of Origin: China
- Brand Name: DP-PV
- Model Number: DP-M60
- Weight: 18.200 kg
ELECRICAL DATA
DP 275W 280W
Nominal Max. Power(Pmax) 275W 280W
Opt.Operating Voltage(Vmp) 31.3V 31.5V
Opt.Operating Current(Imp) 8.80A 8.89A
Open Circuit Voltage(Voc) 38.3V 38.5V
Short Circuit Current(Isc) 9.31A 9.43A
Module Efficiency 16.8% 17.11%
Operating temperature -40℃~ 85℃
Max.System Voltage 1000V(IEC)or1000V(UL)
Module Fire Performance TYPE1(UL 1703)or
CLASS C(IEC61730)
Max.Series Fuse Rating 15A
Application Classification ClassA
Power Tolerance 0~ 5W
Under Standard Test Conditions(STC)of irradiance of 1000W/㎡，spectrum AM1.5 and cell temperature of 25℃
